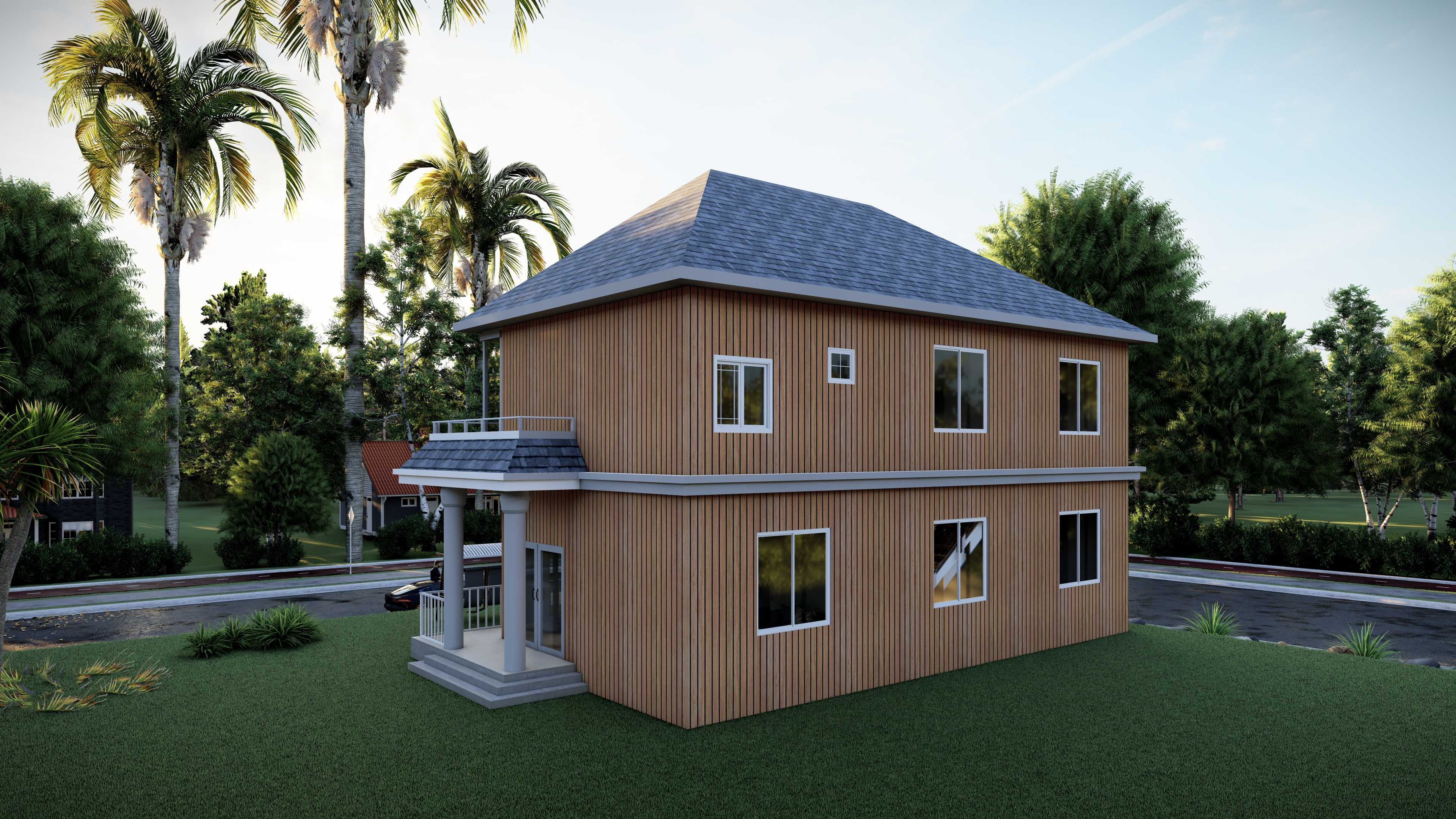

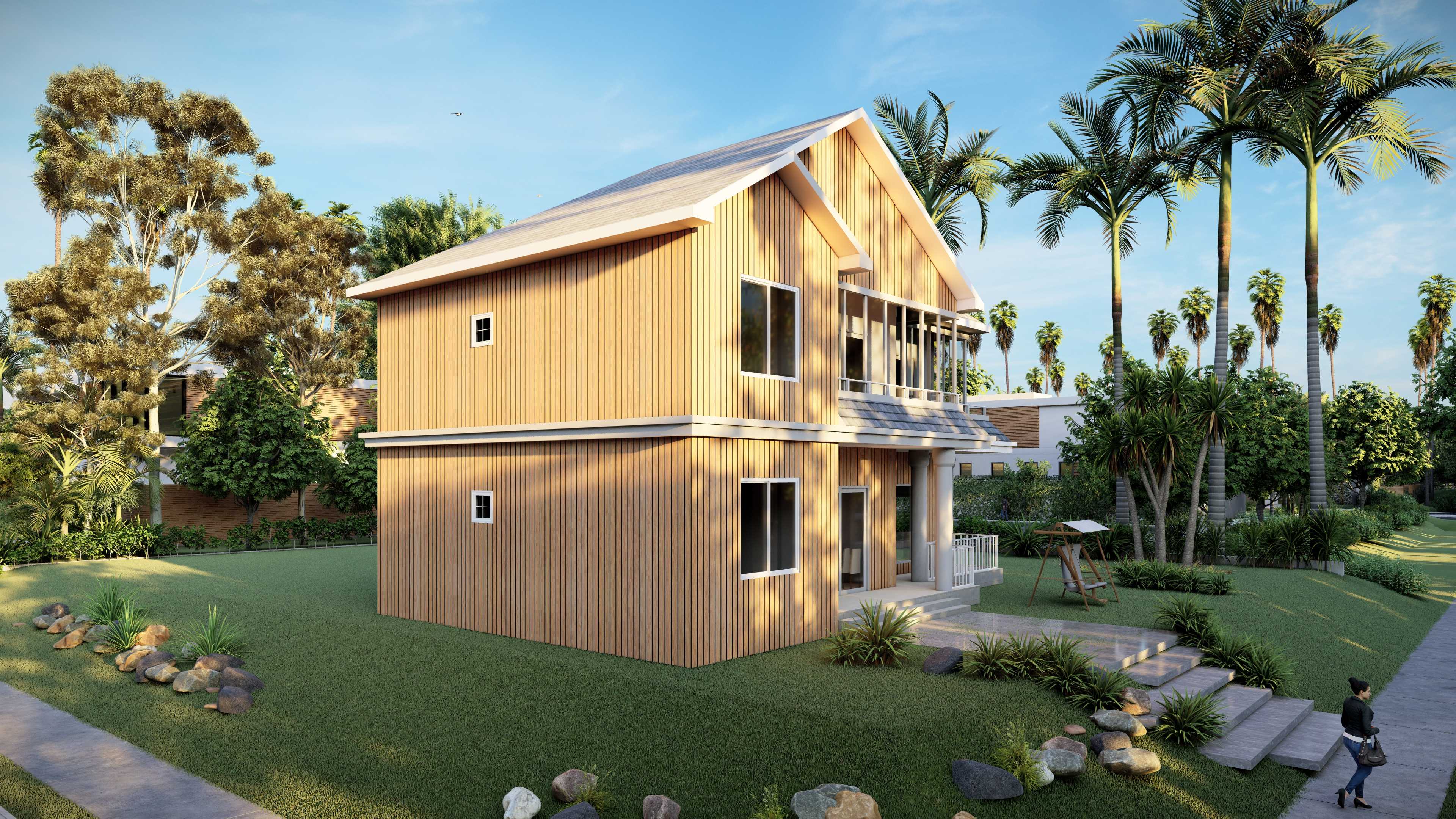

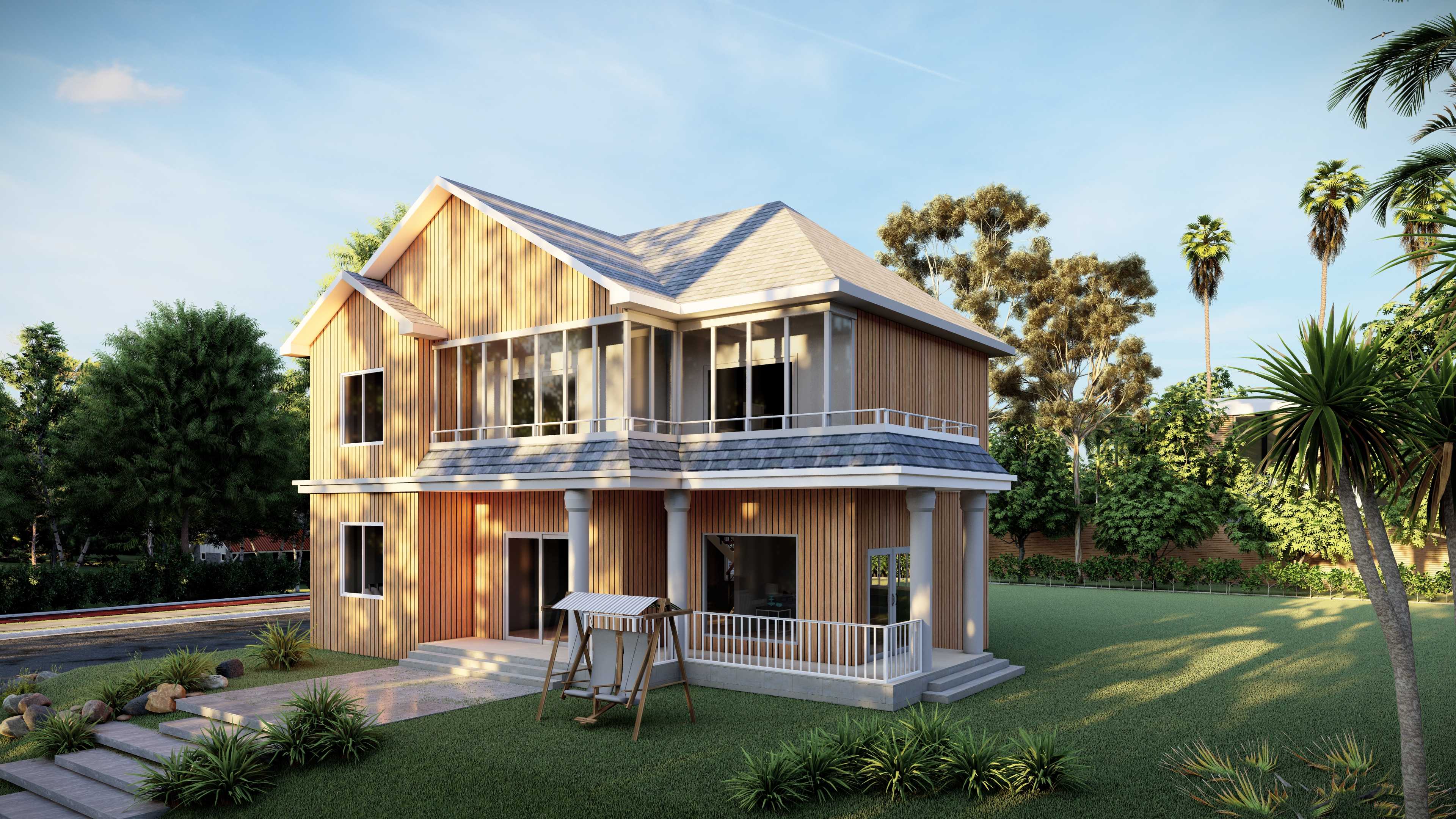

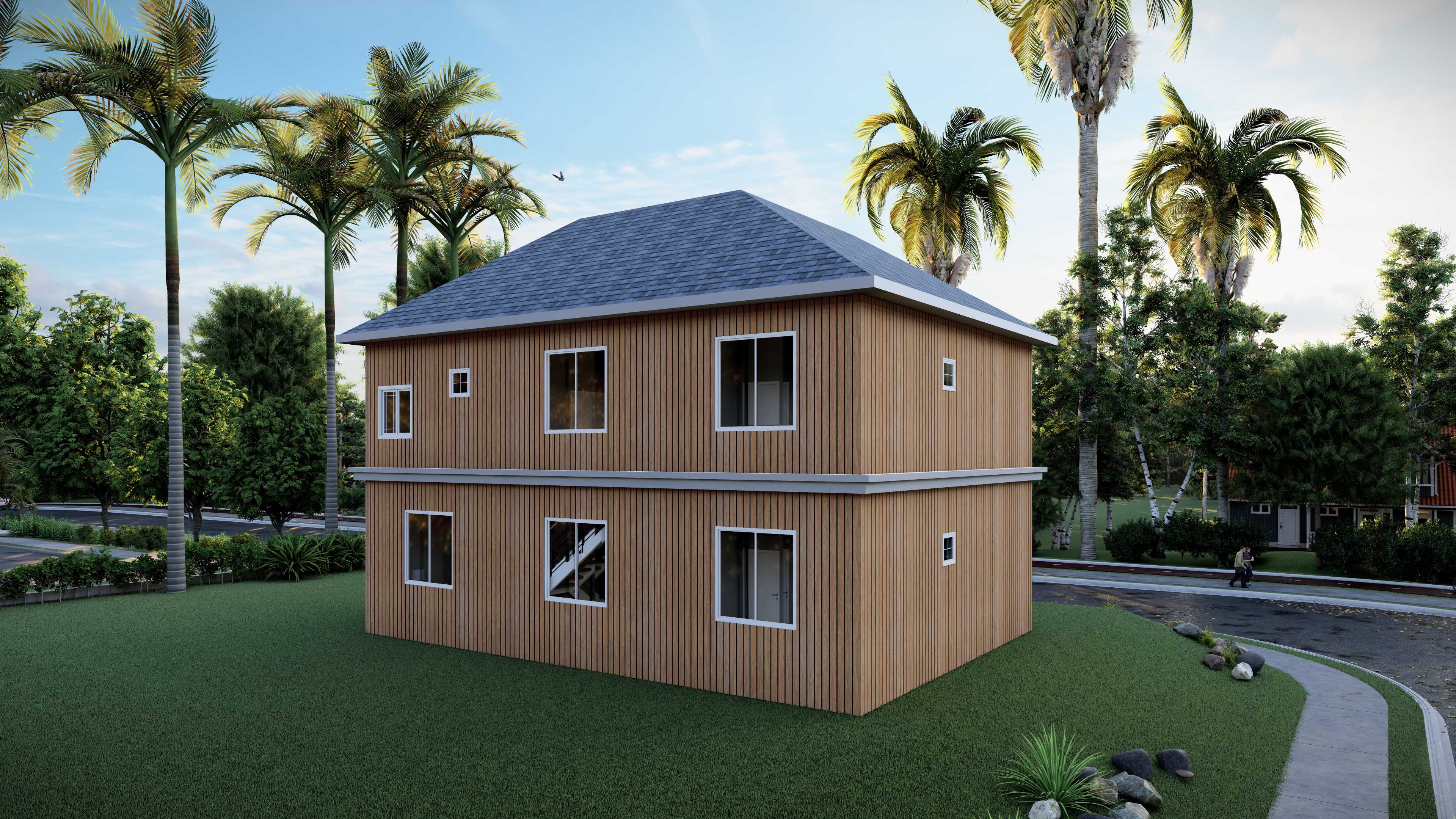

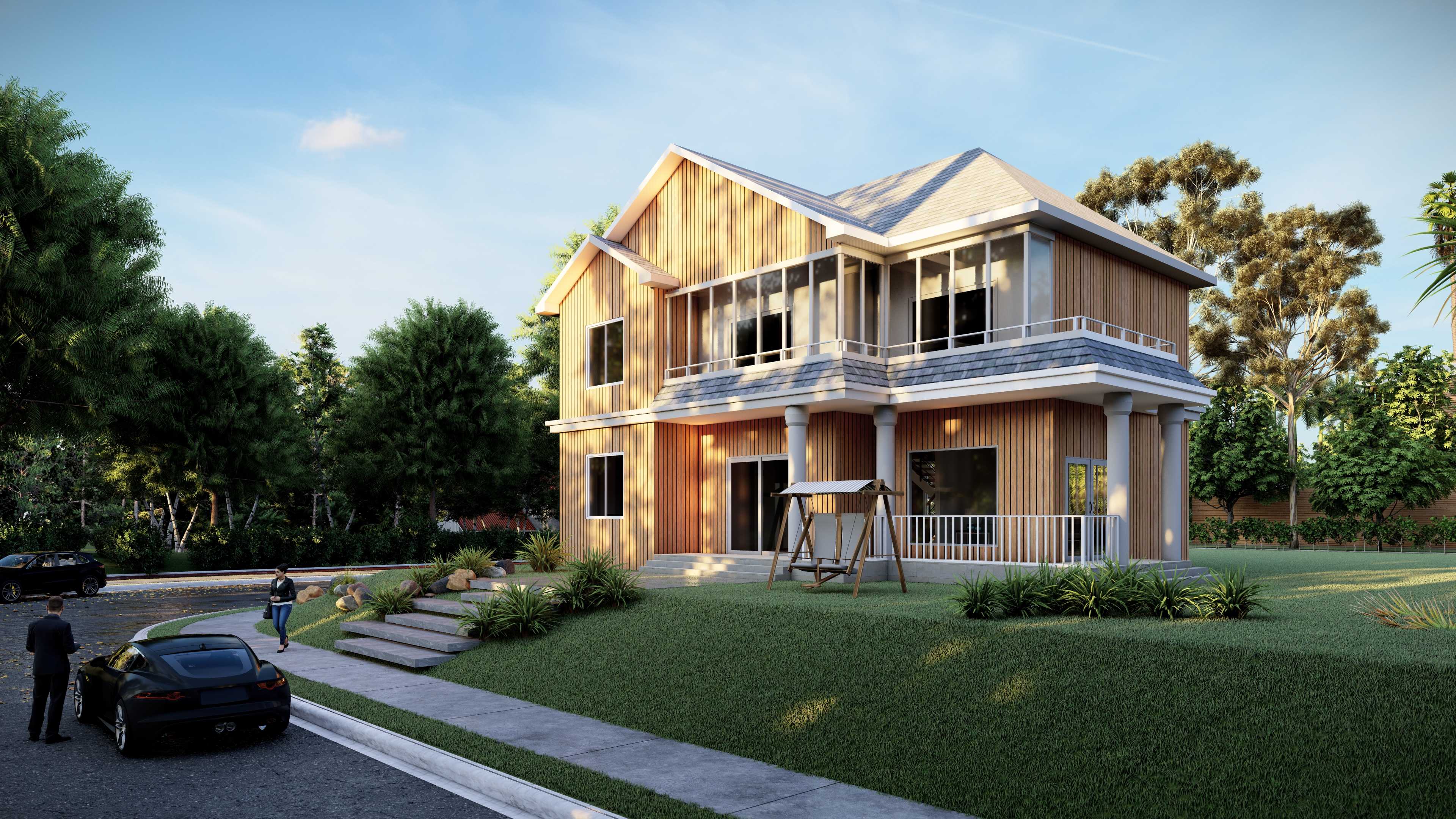

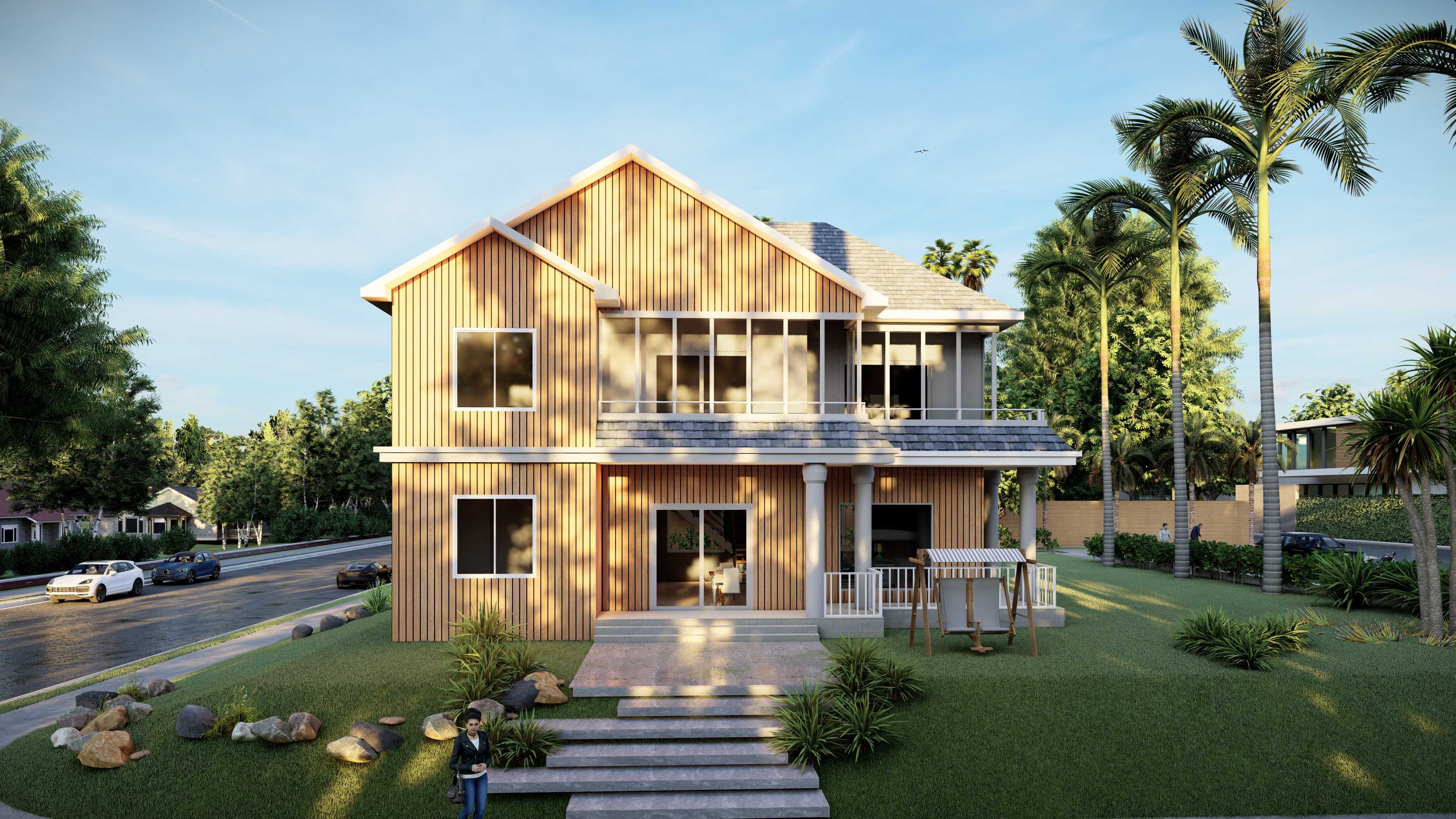

China Low Cost Ready Made Prefabricated Villa – Quality Integrated House
China Low Cost Ready Made Prefabricated Villa – QB25
| No. | NAME | DESCRIPTION | UNIT | THEORY QTY | LOSS RATE | UNIT | ACTUAL QTY |
| 一 | LGS Structure/轻钢结构 | ||||||
| 1 | steel structure | ㎡ | 230 | 1.00 | T | 9.20 | |
| 2 | fittings | set | 230 | 1.00 | ㎡ | 230.00 | |
| 二 | Wall System/墙体系统 | ||||||
| 1 | External wall OSB board/外墙OSB板 | 1220*2440*9mm | ㎡ | 355.2 | 1.30 | pc | 160 |
| 2 | External wall unidirectional breath paper/外墙单向呼吸纸 | ㎡ | 585.2 | 1.30 | m2 | 761 | |
| 3 | External wall wooden support/外墙木方 | 30*40*3000mm | m | 1065.6 | 1.30 | pc | 462 |
| 4 | External wall metal carved board/外墙金属雕花板 | 381*3800*16mm +381*4500*16mm | ㎡ | 355.2 | 1.30 | ㎡ | 462 |
| 5 | Internal wall OSB board/内墙OSB板 | 1220*2440*9mm | ㎡ | 511.5 | 1.30 | pc | 231 |
| 6 | Internal wall PVC board/内墙石塑板 | 1200*2400*9mm | ㎡ | 511.5 | 1.20 | m2 | 614 |
| 7 | Wet district fiber cement board/厨卫内墙水泥纤维板 | 1220*2440*10mm | ㎡ | 135.96 | 1.30 | pc | 61 |
| 三 | Insulation System/保温隔音系统 | ||||||
| 1 | Glasswool Insulation /墙体玻璃保温棉 | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 501.33 | 1.30 | m2 | 652 |
| 2 | Glasswool insulation(under roof)/吊顶玻璃棉(屋面底部) | T75mm，12㎡/roll 16Kg/m3 | ㎡ | 198.1 | 1.30 | m2 | 258 |
| 3 | External wall XPS board/外墙挤塑板 | 1200*600*40mm | ㎡ | 355.2 | 1.20 | pc | 592 |
| 四 | Floor System/楼地面系统 | ||||||
| 1 | Floor surface OSB/楼面OSB板 | 1220*2440*18mm | ㎡ | 135.2 | 1.30 | m2 | 176 |
| 2 | Floor self-paste waterproof coil/楼面自粘防水卷材 | T1.5mm，-15℃，20㎡/roll | ㎡ | 135.2 | 1.20 | roll | 8 |
| 3 | Floor tile/石塑地板 | 12mm | ㎡ | 230 | 1.10 | ㎡ | 253 |
| 五 | Roof System/屋面系统 | ||||||
| 1 | Roof OSB board/OSB板 | 1220*2440*12mm | ㎡ | 198.1 | 1.50 | pc | 103 |
| 2 | self-paste waterproof coil/自粘性防水卷材 | T1.5mm，-15℃，20㎡/roll | ㎡ | 198.1 | 1.40 | roll | 14 |
| 3 | Roof tile/屋面瓦 | asphalt tile | ㎡ | 198.1 | 1.50 | pack | 106 |
| 4 | Roof ridge tile/屋脊瓦 | asphalt tile | m | 49.12 | 1.10 | pack | 7 |
| 5 | Roof eaves pvc molding /PVC檐口件 | 6m/pc | m | 109.18 | 1.50 | pc | 27 |
| 6 | PVC closing strip/PVC收口条 | 4m/pc | m | 109.18 | 1.50 | pc | 41 |
| 7 | Metal carved board under roof eaves/檐底金属雕花板 | 381*3800*16mm | ㎡ | 65.508 | 1.50 | pc | 68 |
| 六 | Ceiling/吊顶系统 | ||||||
| 1 | pvc ceiling/pvc 吊顶板 | 6000*200mm | ㎡ | 230 | 1.20 | ㎡ | 230.00 |
| 2 | pvc angle skirting/pvc包角 | ㎡ | 230 | 1.05 | ㎡ | 241.50 | |
| 七 | Door & Window/室外门窗系统 | ||||||
| 1 | Alumunium double glaze window/断桥铝窗 | ㎡ | 51.78 | 1.00 | ㎡ | 51.78 | |
| 2 | Steel and MDF door/室外防盗门，室内复合门 | ㎡ | 17.2 | 1.00 | ㎡ | 17.20 | |
| 八 | Water&Electric System/水电系统 | ||||||
| 1 | Water Pipes/给排水 | ㎡ | 230 | 1.00 | ㎡ | 230.00 | |
| 2 | Electric system/电配 | Include weak current,exclude socket/switch/light,etc | ㎡ | 230 | 1.00 | ㎡ | 230.00 |
| 九 | Accessories System/配件 | ㎡ | 230 | 1.00 | ㎡ | 230.00 | |
| 十 | Loading /装货 | ㎡ | 230 | 1.00 | ㎡ | 230.00 |
| Item | Detail |
| Main material | a.light steel as steel frame, including C section steel, V section steel, square steel tube. |
| b.Various sandwich panels for wall and roof, the insulation can be EPS, rock wool, fiber glass wool. | |
| Window | Aluminum alloy shutter window, plastic-steel window. |
| Door | EPS/rock wool/fiber glass wool sandwich panel door, steel/palstic-steel/aluminum alloy door. |
| Optional items | We can supply you bathroom, kitchen, electricity system, home appliance, furniture and other coponents as per your request. |
| Characteristics | a.Flexible design, doors, windows and interior patitions can be fixed at any position. |
| b.Easy to assemble and disassemble, saving more time and cost. | |
| c.Long service life, repetitive to use, normally more than 15 years using life. | |
| d.Quick fabrication, fast installation. | |
| e.Safe and reliable. | |
| f.Different colors for your choice. | |
| Applications | Construction site, temporary office, home, dormitory, labor, camp, canteen, workshop, warehouse, etc. |
| Fabrication | Strictly fabricate, every member based on drawings confirmed. |
| Installation | Complete instructions for installation or technical support by assigning our engineer on site. |
| Packing | Reasonable packing ensures the quality and convenience to transport and install. |
