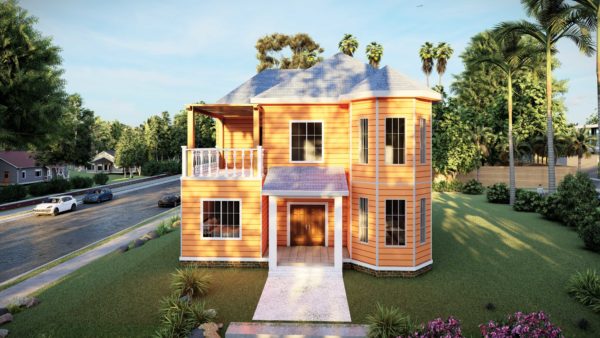

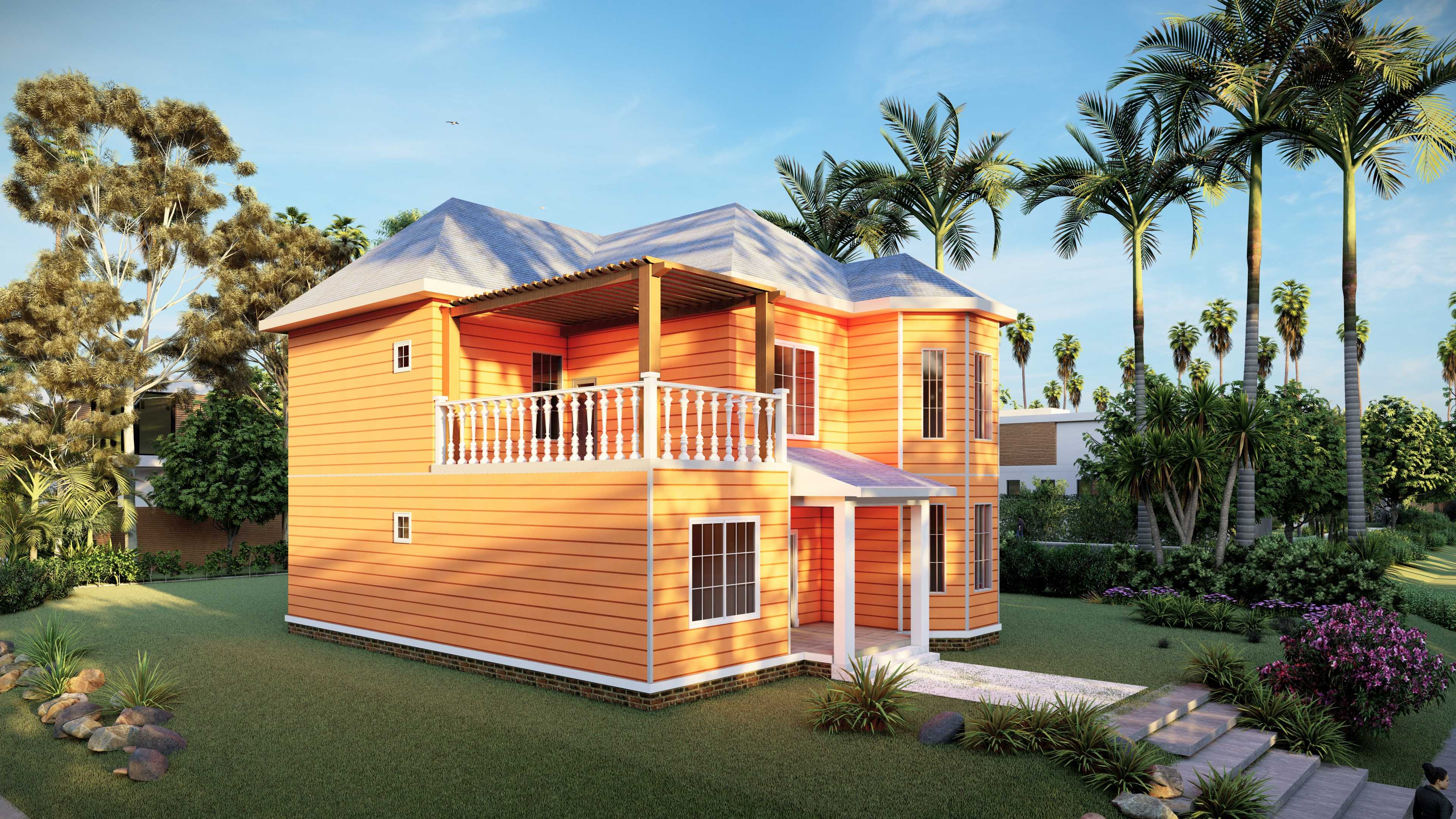

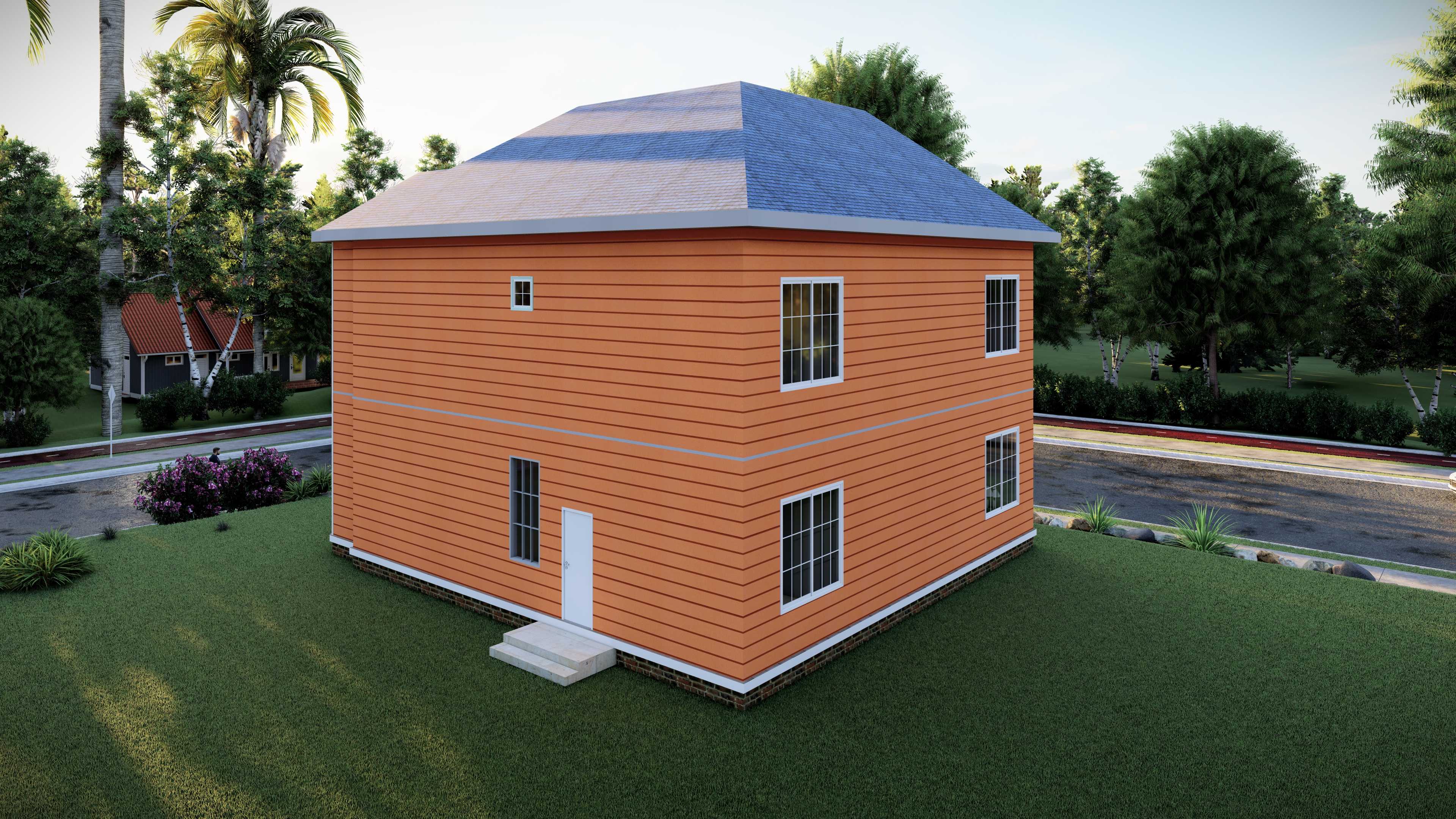

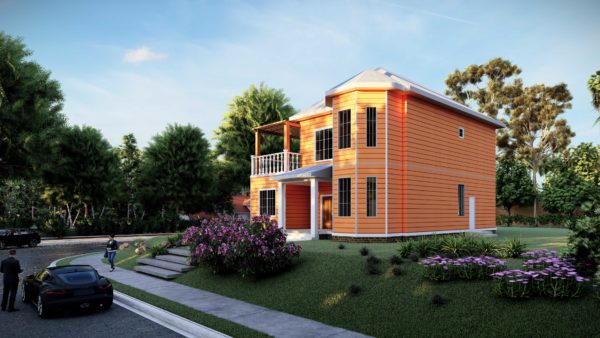

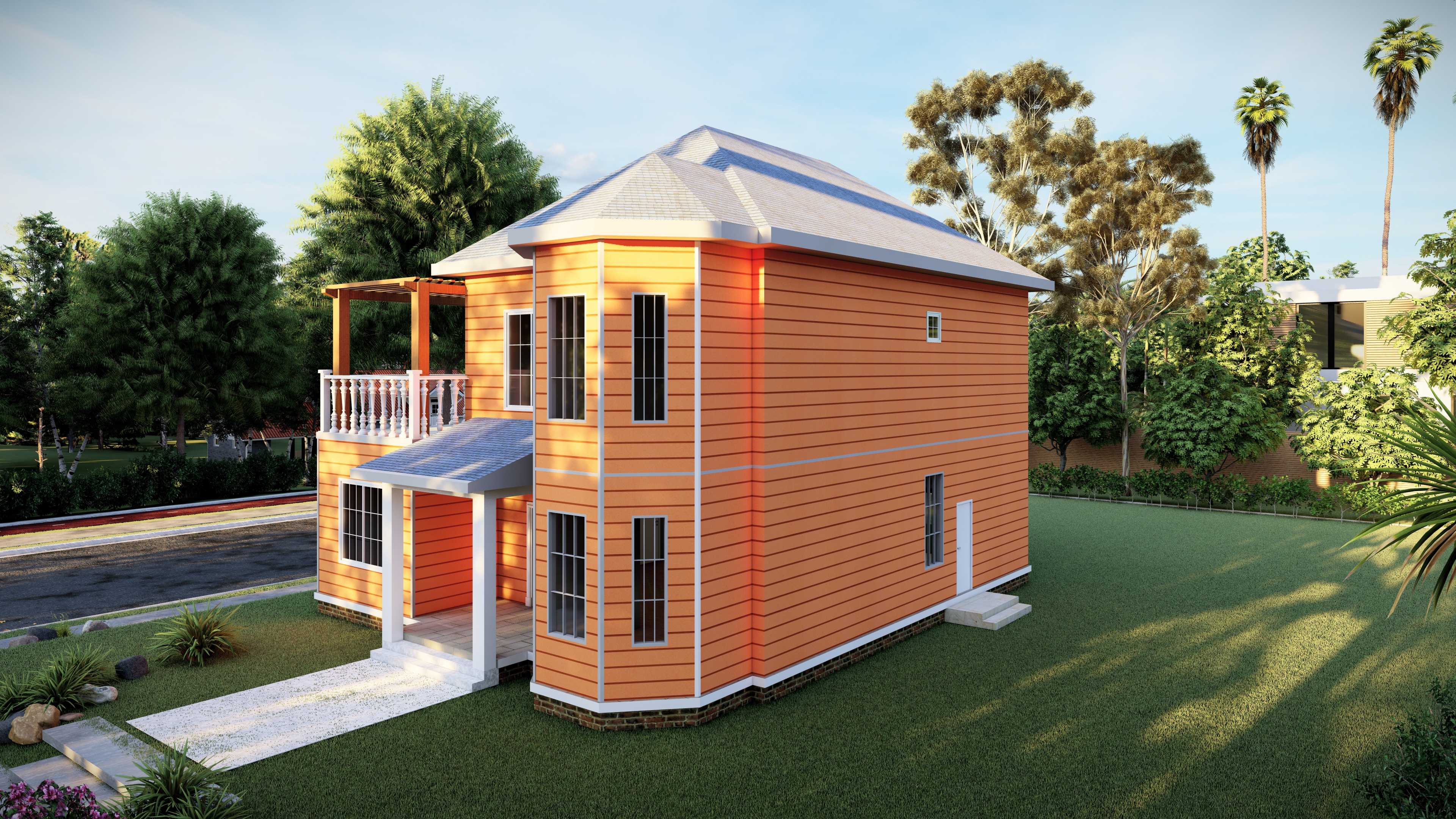

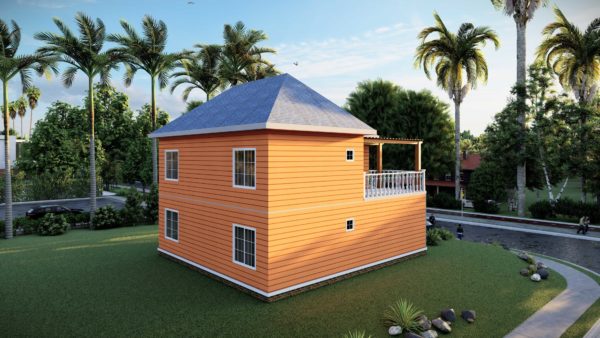

China Luxury Fast Build Light Steel House -QB22

China Luxury Fast Build Light Steel House – Quality Integrated House

China Luxury Fast Build Light Steel House – QB22

No.	NAME	DESCRIPTION	UNIT	THEORY QTY	LOSS RATE	UNIT	ACTUAL QTY
一	LGS Structure/轻钢结构
1	steel structure		㎡	280	1.00	T	11.20
2	fittings		set	280	1.00	㎡	280.00
二	Wall System/墙体系统
1	External wall OSB board/外墙OSB板	1220*2440*9mm	㎡	363.02	1.30	pc	164
2	External wall unidirectional breath paper/外墙单向呼吸纸		㎡	643.02	1.30	m2	836
3	External wall wooden support/外墙木方	30*40*3000mm	m	1089.06	1.30	pc	472
4	External wall metal carved board/外墙金属雕花板	381*3800*16mm +381*4500*16mm	㎡	363.02	1.30	㎡	472
5	Internal wall OSB board/内墙OSB板	1220*2440*9mm	㎡	587.8	1.30	pc	265
6	Internal wall PVC board/内墙石塑板	1200*2400*9mm	㎡	587.8	1.20	m2	705
7	Wet district fiber cement board/厨卫内墙水泥纤维板	1220*2440*10mm	㎡	128.04	1.30	pc	58
三	Insulation System/保温隔音系统
1	Glasswool Insulation /墙体玻璃保温棉	T75mm，12㎡/roll    16Kg/m3	㎡	539.43	1.30	m2	701
2	Glasswool insulation(under roof)/吊顶玻璃棉(屋面底部)	T75mm，12㎡/roll    16Kg/m3	㎡	190.4	1.30	m2	248
3	External wall XPS board/外墙挤塑板	1200*600*40mm	㎡	363.02	1.20	pc	605
四	Floor System/楼地面系统
1	Floor surface OSB/楼面OSB板	1220*2440*18mm	㎡	143.2	1.30	m2	186
2	Floor self-paste waterproof coil/楼面自粘防水卷材	T1.5mm，-15℃，20㎡/roll	㎡	143.2	1.20	roll	9
3	Floor tile/石塑地板	12mm	㎡	280	1.10	㎡	308
五	Roof System/屋面系统
1	Roof OSB board/OSB板	1220*2440*12mm	㎡	190.4	1.50	pc	99
2	self-paste waterproof coil/自粘性防水卷材	T1.5mm，-15℃，20㎡/roll	㎡	190.4	1.40	roll	13
3	Roof tile/屋面瓦	asphalt tile	㎡	190.4	1.50	pack	102
4	Roof ridge tile/屋脊瓦	asphalt tile	m	70.6	1.10	pack	10
5	Roof eaves pvc molding /PVC檐口件	6m/pc	m	56.31	1.50	pc	14
6	PVC closing strip/PVC收口条	4m/pc	m	56.31	1.50	pc	21
7	Metal carved board under roof eaves/檐底金属雕花板	381*3800*16mm	㎡	33.786	1.50	pc	35
六	Ceiling/吊顶系统
1	pvc ceiling/pvc 吊顶板	6000*200mm	㎡	280	1.20	㎡	280.00
2	pvc angle skirting/pvc包角		㎡	280	1.05	㎡	294.00
七	Door & Window/室外门窗系统
1	Alumunium double glaze window/断桥铝窗		㎡	44.42	1.00	㎡	44.42
2	Steel and MDF door/室外防盗门，室内复合门		㎡	14.4	1.00	㎡	14.40
八	Water&Electric System/水电系统
1	Water Pipes/给排水		㎡	280	1.00	㎡	280.00
2	Electric system/电配	Include weak current,exclude socket/switch/light,etc	㎡	280	1.00	㎡	280.00
九	Accessories System/配件		㎡	280	1.00	㎡	280.00
十	Loading /装货		㎡	280	1.00	㎡	280.00

Item	Detail
Main material	a.light steel as steel frame, including C section steel, V section steel, square steel tube.
	b.Various sandwich panels for wall and roof, the insulation can be EPS, rock wool, fiber glass wool.
Window	Aluminum alloy shutter window, plastic-steel window.
Door	EPS/rock wool/fiber glass wool sandwich panel door, steel/palstic-steel/aluminum alloy door.
Optional items	We can supply you bathroom, kitchen, electricity system, home appliance, furniture and other coponents as per your request.
Characteristics	a.Flexible design, doors, windows and interior patitions can be fixed at any position.
	b.Easy to assemble and disassemble, saving more time and cost.
	c.Long service life, repetitive to use, normally more than 15 years using life.
	d.Quick fabrication, fast installation.
	e.Safe and reliable.
	f.Different colors for your choice.
Applications	Construction site, temporary office, home, dormitory, labor, camp, canteen, workshop, warehouse, etc.
Fabrication	Strictly fabricate, every member based on drawings confirmed.
Installation	Complete instructions for installation or technical support by assigning our engineer on site.
Packing	Reasonable packing ensures the quality and convenience to transport and install.
